Description

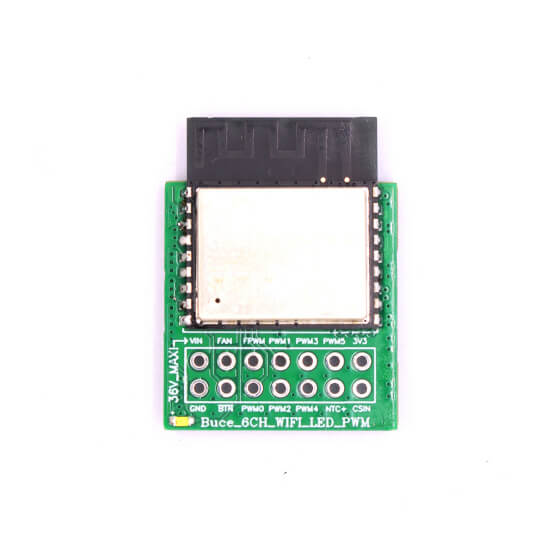

Buce (BLC06) is an OSHWA-certified open-source, 6-channel all-in-one Wi-Fi LED PWM dimmer module designed for high-end aquatic lighting systems.
Features
The Buce module integrates every high-end feature standard in professional reef and planted tank lighting, offering a level of control and precision that rivals any flagship LED fixture on the market. It features six independent PWM dimming channels, allowing users to customize and control lighting effects wirelessly through our easy-to-use phone app.
Each retail unit is pre-loaded with Pro Edition firmware, providing enhanced features over the standard community build.

Applications:
- Aquatic Lighting
- Indoor Agriculture
- Photography Lighting
- Home Lighting
- And More
Specifications
- Micro-controller: ESP32-C3
- Channels: 6 independent PWM
- Driver Compatibility: Supports a wide range of Constant Current (CC) and Constant Voltage (CV) LED drivers.
- Dimming Levels: 4096
- PWM Frequency: up to 19.5 kHz (configurable)
- Input Voltage: 5–36 V
- Dimensions: 22 × 30 mm
- Thermal Shutdown: >65 °C (configurable)
- Interfaces: 0.1”(2.54 mm) pin header
- Supported Peripherals:
- INA138/INA139 current sensor
- External push button
- Thermistor, 10kΩ, β = 3950
- 12 V PWM fan or two-wires fan
- Contains FCC/CE certified ESP32-C3 module.
- RoHS compliant manufacturing.
- Product Net Weight: TODO
- Package Gross Weight: TODO

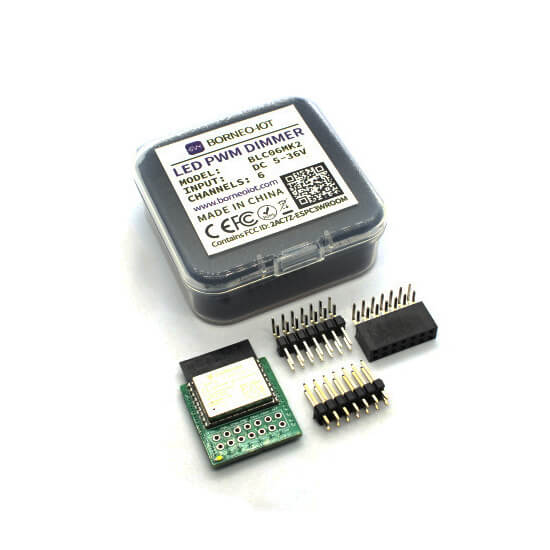

- Package Dimensions: 54 × 54 × 20 mm

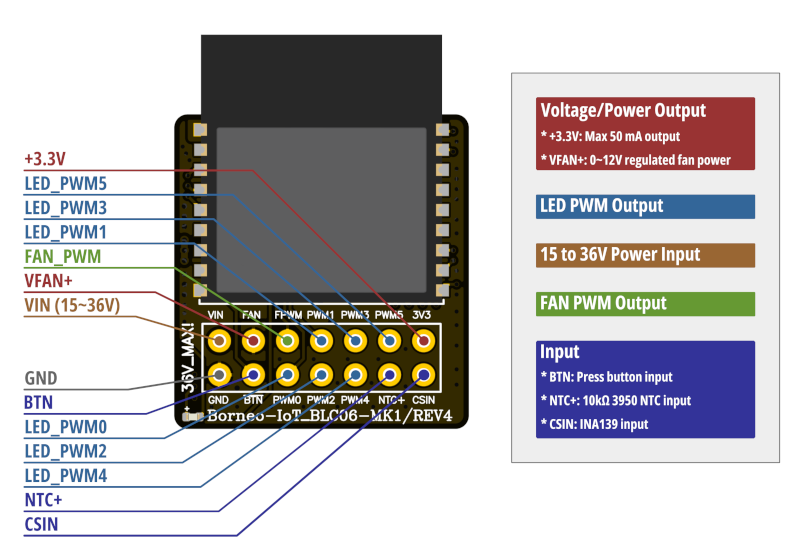

Pinout

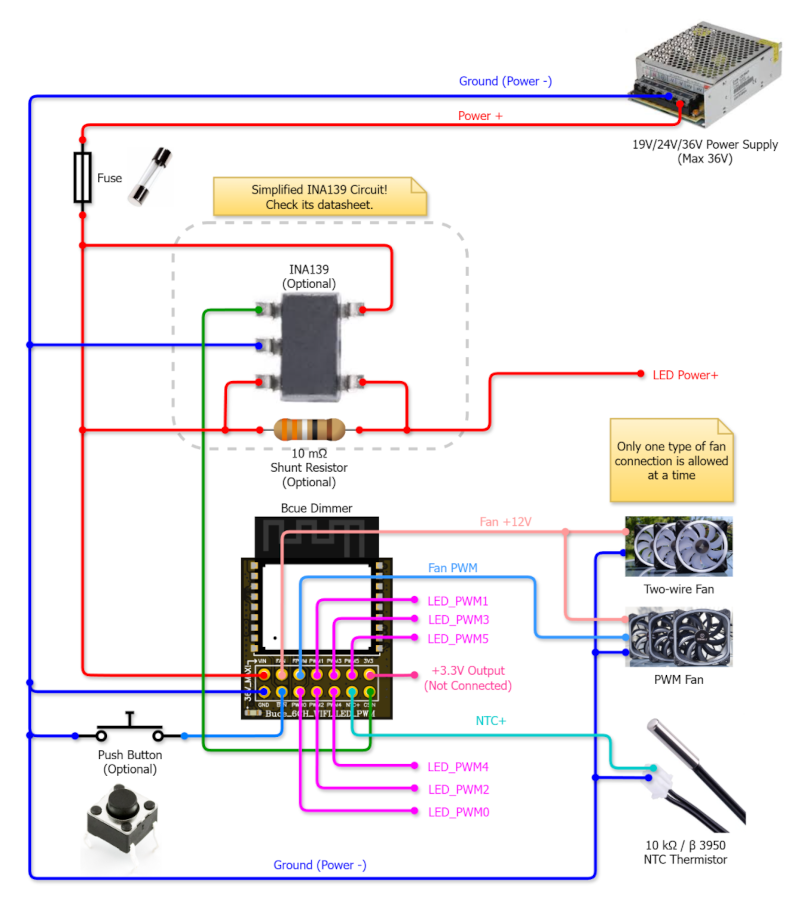

Usage Example

White Label & Customization
White label and OEM services are available for bulk orders, including:
- App Customization: Support for branded mobile applications and UI tailoring.
- Logo Branding: Custom logo printing or engraving on the hardware.
- Custom Firmware: Tailored control logic and firmware development to meet specific requirements.
- Packaging: Branded retail packaging solutions for commercial partners.

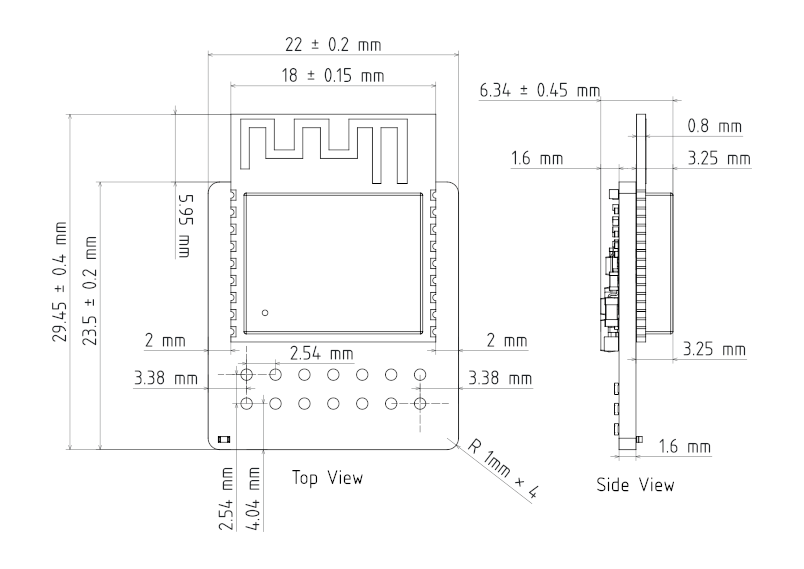

Dimensions

Related Resources
- App Download
- Online Documentation & Datasheet
- OSHWA Certification: CN000017
