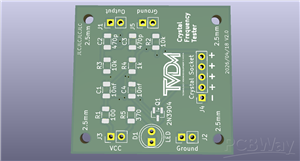

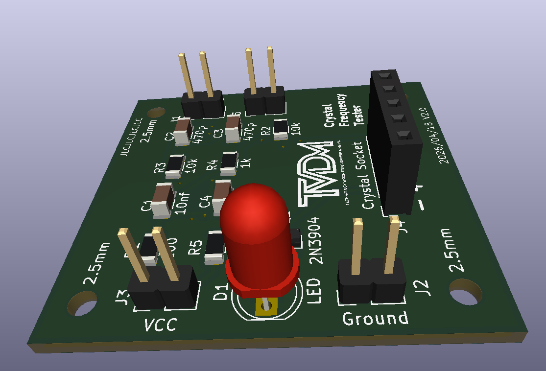

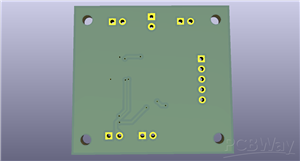

Crystal Tester
The Crystal Tester allows you to check any crystal for frequency accuracy. Connect your oscilloscope to the output pin and insert a crystal into the socket. Ensure one pin of the crystal is connected to the ground terminal, and the other to one of the positive pins. Your choice of pin will depend on the physical lead spread of the crystal.
VCC should be 5V to 12V. All the SMD components are size 1206 for easy soldering,
Crystal Tester
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Attribution-ShareAlike (CC BY-SA) License
