All the amplifier that you'll ever need. After this build, there will be nothing else to upgrade to in terms of pure performance. Extra features can be plugged in using external boards.This project features a modular, high-performance class A/B design split into a high-current output board and an IPS/VAS board, engineered specifically for those who demand absolute sonic transparency and textbook-perfect engineering.

NB: When purchasing the pcbs, select panel by customer option and 2 for different design in panel. You'll receive 5 sets of pcbs which you can use to create 5 channels of amplification, share the extras with others or resell the extra boards if you only need two channels. You can also purchase as a group and select more than 5 pcbs in order to save on pcb fabrication cost. 5 sets of pcbs is the minimum order.

Ultra low distortion, high current, high power, high slew rate power amp boards 1 ohm stable and low THD. It uses 4 output pairs per channel and all boards for both channels are separate for dual mono design. Amplifier is split into two boards.

THD

THD 1k: 0.0000x% range at 2, 4 and 8 ohms load.

THD 20k 0.000x% range at 2, 4 and 8 ohms load.

Slew rate: at least 75 volts/microseconds

Max rail voltages:+-80v, +-100V can be achieved with >110v slim filter capacitors(only experienced builders should attempt 100v rails since any problems on the amp might damage many transistors since only the output transistors and some drivers can handle over 200V across them)

+-80V rails with 100v filter capacitors is recommended for +-70V clean power which equates to 300W into 8 ohms and more than 500W into 4 ohms

The THD results are based transistors specified on pcb silkscreen. If you change the transistors to a different one, ensure they match or exceed the ones in the board in terms of max VCE and HFE, power and pinout(can rotate or cross legs to match). Due to the circuit being highly optimized, there is loss of headroom and max clean voltage is 10v below rail voltage. For 4 and 2 ohms speakers, it shouldn't be an issue since you will hit current limit before voltage limit. If you want more headroom for 8 ohm speakers at the cost of performance, you can remove the VAS cascode transistor on input VAS board, Q34, and solder a jumper wire between collector and emitter pads. Then replace the VAS transistor BC550, Q10, with high voltage one, e.g. 2n5551 or 2SC3503. You'll gain 5v more headroom of clean voltage each way. NB the circuit has been designed to clip cleanly and tube amp like thus on transients you won't notice clipping and transients can go up to 2V below rails without harsh transistor clipping sound. Perfect measurements can only be achieved 10v below rails and 5v below rails without cascode VAS transistor.

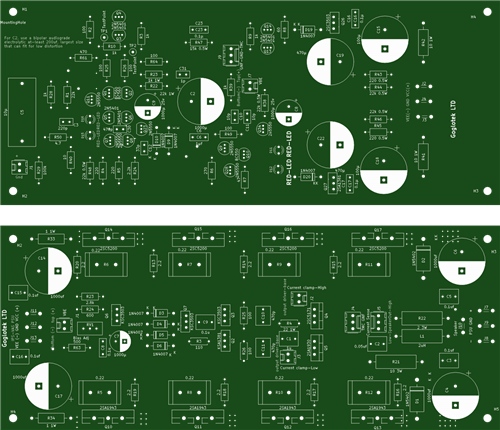

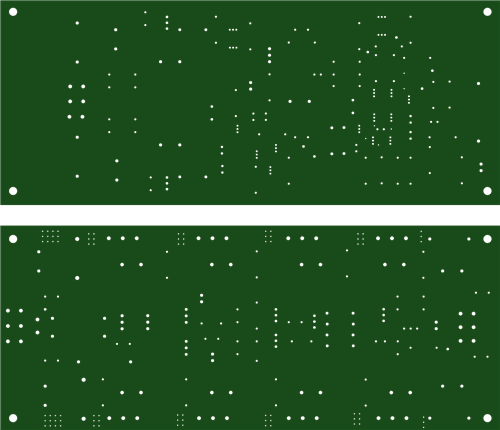

There are two boards, Input VAS board and Output board. Connections between the two boards are made using wires and connectors(can solder wires directly to pads). Mounting holes of the two boards line up perfectly thus you can stack them up, input-vas board on top of output board on heatsink. You can also mount them at 90 degrees to each other on the chassis.

Input Board:

Match input pairs transistors HFE. Transistors that are mounted facing each other should be matched and thermally coupled. Put thermal paste on their faces and squeeze them tightly. Use heat shrink tubing or zip ties to hold them together permanently. Also try to match resistors of same value close to each other at half of the board on the input side.

Output Board:

The board uses output triple configuration for high currents and low THD on high currents/low speaker impedance.

Match the 4 output pairs of transistors. The VBE multiplier transistor should be mounted on top of one of the centrally located output transistor. Solder wires to its pads and solder them to the vbe transistor. The board can handle 20 amps of current but there is a soft limiter of 15 amps. If you need more current, you can unsolder, D3, D4, D5 and D6 diodes or leave them unpopulated. There is a current sense pin which you can use to determine current flowing on one output transistor which you can multiply by 4 for total current into the speaker. The voltage between the two pins is voltage across 0.22 ohm resistor and using ohms law you can calculate current flowing through the resistor. you can divide down the voltage using resistors so that it becomes 0.6v at current limit and feed it to the base of a transistor so that it can turn it on. The transistor can open relay e.t.c. There is also a current clamp pins for use in conjunction with current sense to clamp current when it reaches a certain level to protect output transistors from over current and short circuit. To clamp current, divide down current sense voltage to be 0.6v at the set current limit level and then drive a base of shunt transistor connecting driver base pin and output pin. Connect driver base pin to collector of your shunt transistor using a diode(prevents current from flowing backwards under certain conditions) and connect the transistors emitter to output pin. There are two for both halves of the signal waveform. When pre-set current level is reached, the shunt transistor will open and steal base current from drivers which in turn will limit output base currents and thus output emitter currents gets clamped. Fasted way of protecting the expensive output devices and other methods like comparator or microcontroller based might be too slow to react and save the output devices. It's optional and if you don't need the current limiting feature, you can leave the pins unconnected. Once current limiter/protection board is ready, it will be linked here. It will allow the user to just connect it to the current sense and current clamp and it will handle the protection.

If you use slow pre-drivers, drivers and output transistors and encounter ringing and instability, increase values of miller compensation capacitors c10 and c11 on Input board. You'll increase 20k THD and reduce slew rate though. Use fast transistors for pre-driver, driver and output for best performance.

Use quality genuine parts for best performance. Non-ferromagnetic resistors, connectors and capacitor leads. Filter electrolytic capacitors determine your max rail voltages thus size them appropriately with at least 10V margin for longevity. The 0.1uf capacitors should be film capacitors and the capacitors in picofarads range should be NP0, C0g through hole ceramics for best performance.
