Bat Synth 2
A simplification of Bat Synth to increase replay quality, This requires a 384kHz USB-C DAC, about ?15 from Amazon, to replay audio from computer or phone.

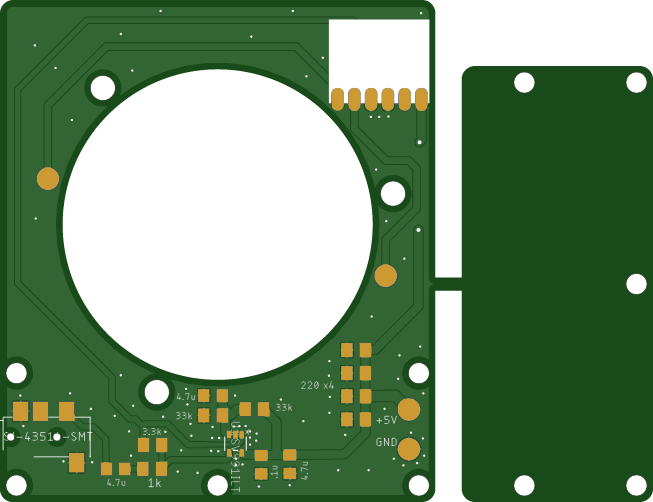

Hand soldering of this will be trivial, no need to order a solder stencil - there's only the headphone jack and the LTK5128 module.

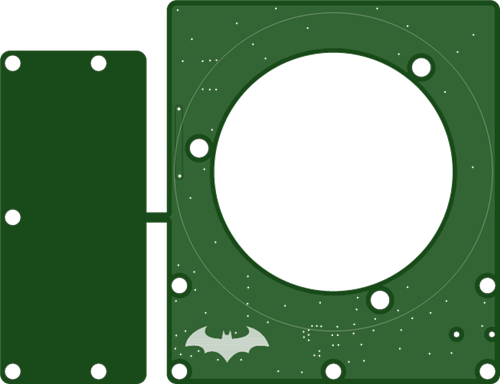

The back of the main PCB exposes bare pads for +5V and GND, simply chop the end off a USB charging cable, strip the wires and solder to the PCB, then power from a USB power bank. Audio comes in on a 3.5mm jack.

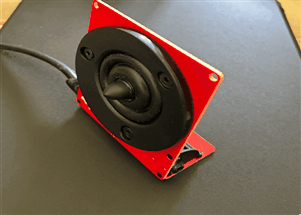

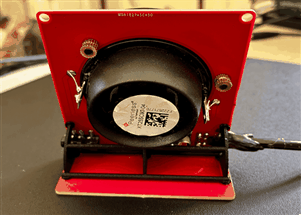

3D printed frame attaches base plate to main PCB, and is quoted as about ?1.50 from Midlands3D in HP MJF, probably the same or slightly less from Wpsload.
Bat Synth 2
*Wpsload community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Attribution-ShareAlike (CC BY-SA) License
