Description
FY6900 OCXO
10 Mhz OCXO for FY6900 signal generator using Vectron C4550A1-0213 , U74HC14L that acts as Schmitt-trigger for signal conditioning, as well as a buffer to decouple the OXCO output from capacitive load and a level shifter from 5v to 3.3v output.
All credits to Sebastian Schumb

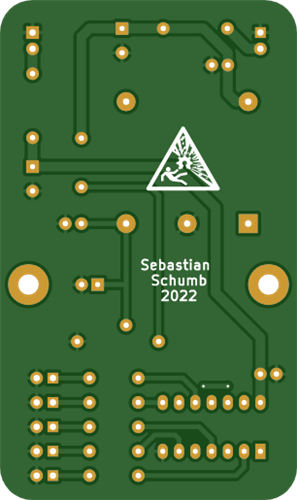

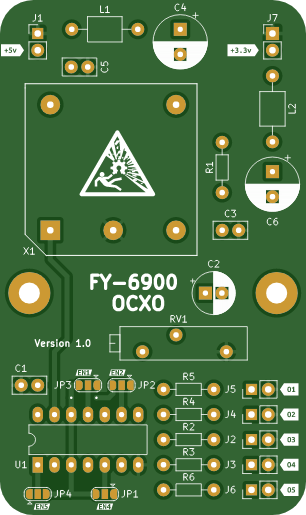

Schematic and Layout
https://forgejo.zenerdio.de/sebastian/fy6900-ocxo
May 03,2026
14 views
FY6900 OCXO
10 Mhz OCXO for FY6900 signal generator
14
0
1
Published: May 03,2026
Standard PCB
Wpsload Donate 10% cost To Author
Only PCB
*Wpsload community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Copyright Info
Attribution-ShareAlike (CC BY-SA) License
Read More⇒
Under the
Attribution-ShareAlike (CC BY-SA)
License.
